Overview

Today's data-intensive aircraft requirements are pushing the need for cables that can stream data and video reliably at higher speeds in airborne digital video interface (DVI) systems. Cables must also meet stringent industry requirements necessary for reliable performance in DVI systems operating in demanding radar environments. But, engineers often face the challenge of designing harnesses with digital components that turn out to be insufficient for harsh aerospace environments.

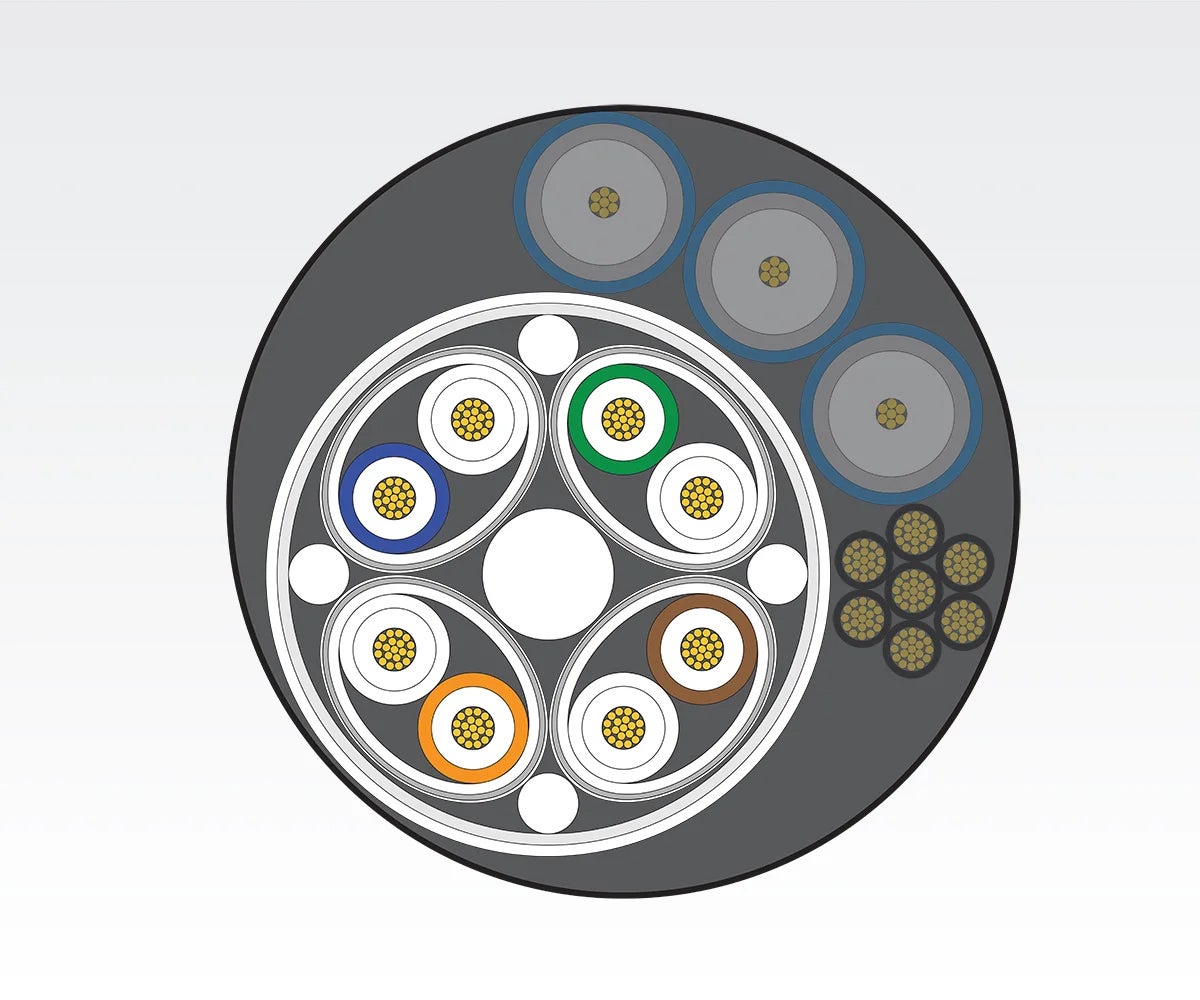

DVI Standard Harness Cross Section image

Standard DIV harness cross-section

Optimal Viewing on Displays

GORE DVI Cables are designed specifically for the digital component of airborne DVI systems. Our single-link cables deliver exceptional signal quality supporting the highest video resolution for optimal viewing on aircraft displays. Unlike many substitutes, our cables meet strict requirements for impedance control, insertion loss, skew, and EMI shielding — providing stable performance in demanding radar environments.

Easy Fit into Standard Harness Designs

Our cables make it easier for design engineers to use them in standard DVI harnesses. They're smaller, lighter weight, and more flexible without sacrificing durability compared to alternatives. So you can fit them easily into a harness cross-section with other components, and they won’t get damaged or break.

Applications

GORE DVI Cables (Digital Only) are engineered to perform reliably in a variety of aircraft applications, including:

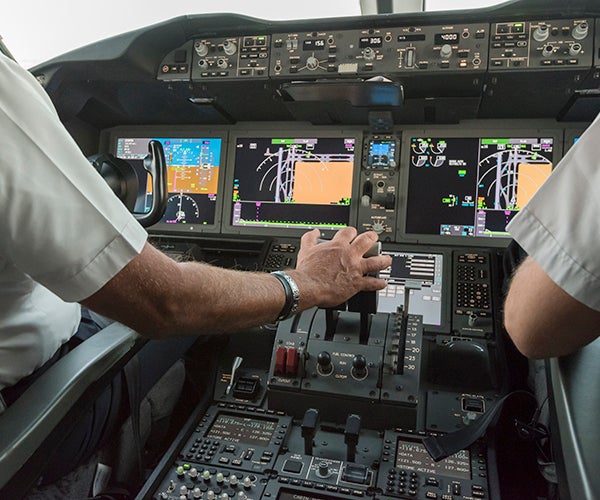

  • cockpit displays
  • flight management systems
  • in-flight entertainment (IFE)
  • weather mapping

If you have any questions or to discuss your specific application needs, please contact a Gore representative.

Benefits

GORE DVI Cables (Digital Only) provide aircraft system architects and engineers with many benefits that improve electrical and mechanical performance such as:

  • single-link configuration built specifically for digital component of DVI systems
  • exceptional signal quality for high-speed data/video transmission
  • support highest resolution on aircraft displays for optimal viewing
  • meet strict requirements for impedance control, insertion loss, skew, EMI shielding
  • robust protection and stable performance in demanding radar environments
  • easily fit into standard DVI harnesses with small, lightweight, flexible designs
  • compatible with variety of high-speed aerospace connector systems/backshells

For more information about the benefits of our cables, please contact a Gore representative.

Properties

These values demonstrate the electrical, mechanical and environmental performance of GORE DVI Cables (Digital Only).

Electrical Property Value
Standard Impedance (Ohms) 100 ± 10
Typical Operating Voltage (V) <15
Nominal Velocity of Propagation (%) 80
Nominal Time Delay ns/m (ns/ft) 4.07 (1.24)
Capacitance pF/m (pF/ft) 40.0 (12.0)
Maximum Skew ps/m (ps/ft)
  Pair-to-Pair
  Within Pair
52.50 (16.0)
13.12 (4.0)
Dielectric Withstanding Voltage (Vrms)
  Conductor-to-Conductor
  Conductor-to-Shield
1500
1000
Mechanical / Environmental Property Value
Jacket Material Engineered Fluoropolymer
Jacket Color White (Laser Markable)
Conductor Sliver-Plated Copper Alloy
Conductor Color-Coding Blue/White, Brown/White, Green/White, Orange/White
Dielectric Material ePTFE/PTFE
Temperature Range (°C) -65 to +200
Part Number & Drawing

Download the drawing to view cable characteristics, like diameter, weight, minimum bend radius, and insertion loss.

Part Number AWG Size (Stranding)
GSC-01-85249-24S 24 (19/36)

Qualifications

GORE DVI Cables (Digital Only) have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)

For more information about the qualifications of our cables, please contact a Gore representative.
