High-Bandwidth Signals

With higher bandwidth requirements rising in avionics, cables must transfer lots of data and video reliably so pilots can maintain communication and passengers can enjoy in-flight entertainment and connectivity (IFEC) for the entire flight. Aviation fiber optic cables must also be smaller and lighter to fit in limited airplane areas.

GORE Fiber Optic Cables offer various Simplex and ribbon versions with single- and multi-mode core types up to OM5 to meet your specific application needs. Delivering strong signals, each version of our aircraft fiber optic cables can easily accommodate bandwidth-intensive requirements to support next-gen data and video architecture.

Impressive level of Robustness

We offer a higher level of robustness with a cable protection tube that shields the fiber core. Our cables are proven to guard against rigorous installation, crushing force, high-intensity vibration, extreme temperatures, mechanical shock, plus more. Each fiber optic data cable meets and even exceeds stringent aerospace industry standards for durability and optical performance.

Unlike competitors, our fiber optics in aircraft are smaller, lighter and routable without losing their strength and signal quality. They balance strength, size, weight and flexibility to maintain fast, stable data and video transfer even in complex, space-limiting installation scenarios.

Whether you choose our robust Simplex or ribbon versions, GORE Fiber Optic Cables offer complete reliability in avionics for faster, more reliable communication and IFEC.

Features & Benefits

GORE Fiber Optic Cables are engineered with unique features that make them more durable against challenging environmental factors and aircraft conditions, including:

  • Impact- and crush-resistant buffering systems
  • chemically inert and temperature-resistant materials
  • space-saving, highly flexible cable diameters

Our cables provide aircraft system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:

  • secure, high-bandwidth data/video transmission with low optical loss
  • high level of robustness and extended life with unique buffering systems
  • proven resistance to high impact, crushing, abrasion, vibration, shock and more
  • proven to exceed new stringent EN4641-301 durability requirements
  • easier routing with more flexibility and tighter fiber optic bend radius protection
  • weight and space savings with smaller, lighter constructions
  • variety of single/multi-mode core types from OM1 to OM5 to meet application of fiber optics in aircraft
  • compatible with a variety of high-speed connector systems and backshells
  • selected pre-qualified samples with short lead times for prototyping and evaluation
  • low risk based on validated product performance in real-world conditions

For more information about the features and benefits of our cables, contact a Gore representative today.

1.8 mm Simplex

HIGH IMPACT & CRUSH RESISTANCE

Our most popular award-wining version offers many advantages of a fiber optic cable. Built with a remarkable buffering system, Our 1.8 mm Simplex is proven to resist high weight impact, crushing, abrasion and kinking compared to competitive cables. This version is also proven to endure high-intensity vibration and mechanical shock in extreme temperatures without optical loss.

Our rugged, compact 1.8 mm Simplex cables are now qualified according to ARINC 802-3 requirements, plus exceed new stringent EN3745-513 requirements for more durability and added protection.

Gore’s materials reduce the force needed to move the cable’s fiber under compression — optimizing installation and signal transmission while enhancing termination with many standard high-speed connector systems.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATION

GORE Fiber Optic Cables (1.8 mm Simplex) accommodate the most bandwidth-intensive aviation applications, like:

  • avionics digital networks
  • cabin/flight management systems
  • digital video systems
  • Ethernet backbone
  • transceivers
  • weather radar systems

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems, like ARINC, MIL-STD-38999, and MIL-PRF-29504. If you have any questions or to discuss your specific application needs, including a bend-sensitive fiber option or particular fiberglass type, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (1.8 mm Simplex) for civil aircraft.

We invite you to download the data sheet for more technical information and performance data.

Optical Property Value
Maximum Optical Loss at 850 nm dB/km 4.0
Maximum Optical Loss at 1310 nm dB/km 3.0
Mechanical / Environmental Property Value
Jacket Material PFA
Jacket Color Violet or Yellow
Core Type Single Mode or Multi-Mode, Graded Index
Coating Type High-Temperature Acrylate
Buffering System Expanded PTFE/Crush-Resistant Layer
OD: 900 microns (Nominal)
Temperature Range °C -65 to +135

We invite you to download our drawings to view cable characteristics, like diameter sizes, weight and tensile strength values.

Part Number Mode Type Core Cladding Coating
GSC-13-84689-04 SM (Single Mode) 9 125 245
GSC-13-84689-07 SM (Single Mode) 9 125 245
GSC-13-84640-04 OM1 (Multi-Mode, Graded Index) 62.5 125 245
GSC-13-84640-07 OM1 (Multi-Mode, Graded Index) 62 125 245
GSC-13-84639-04 OM2 (Multi-Mode, Graded Index) 50 125 245
GSC-13-84639-07 OM2 (Multi-Mode, Graded Index) 50 125 245
GSC-13-84943-04 OM3 (Multi-Mode, Graded Index) 50 125 245
GSC-13-84943-07 OM3 (Multi-Mode, Graded Index) 50 125 245
GSC-13-85423-04 OM4 (Multi-Mode, Graded Index) 50 125 245
GSC-13-85423-07 OM4 (Multi-Mode, Graded Index) 50 125 245
GSC-13-85868-04 OM5 (Multi-Mode, Graded Index) 50 125 245
GSC-13-85868-07 OM5 (Multi-Mode, Graded Index) 50 125 245

GORE Fiber Optic Cables (1.8 mm Simplex) for Civil Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ARINC 802-3; Performance Requirements (GSC-13-84639, GSC-13-84640, GSC-13-84943)
  • BSS7239: Toxicity
  • EN3745-513: Test Methods for Crush and Impact Resistance (GSC-13-84943-07)

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

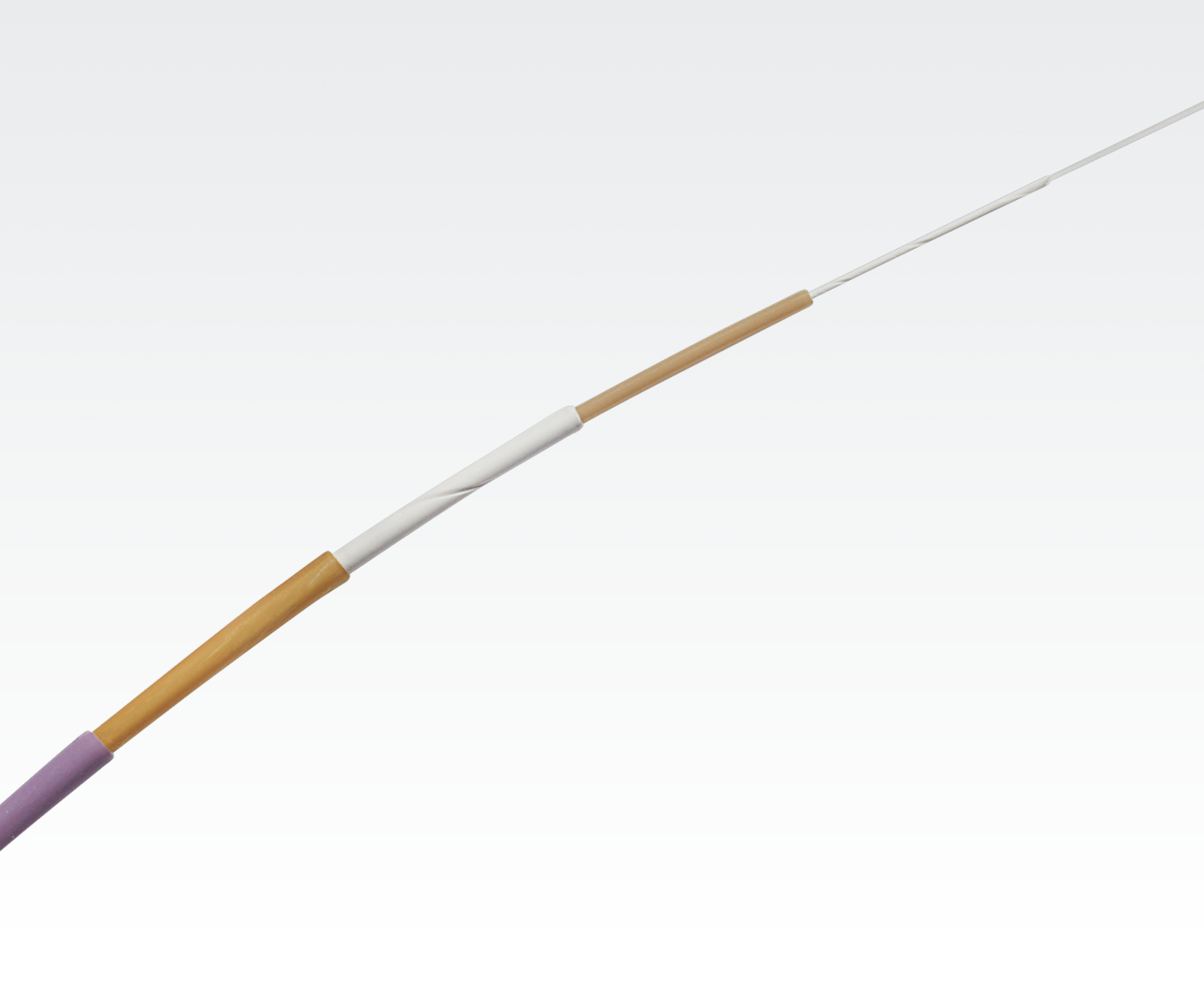

Construction of Gore’s 1.8 mm Simplex flexible fiber optic cable tube.
A
B
C
D
E
F

Perfluoroalkoxy (PFA) jacket

Close

Strength member

Close

Secondary ePTFE layer

Close

Crush-resistant layer

Close

ePTFE layer

Close

Fiber

Close

Crush-resistant layers of GORE Fiber Optic Cables (1.8 mm Simplex)

1.2 mm Simplex

RUGGED BUFFERING SYSTEM

This version of our fiber optic cables delivers stable optical performance with low loss for transferring high-speed digital data and video on avionics networks. Thanks to the rugged, thin buffering system, our 1.2 mm Simplex fights off routing, vibration, shock and tension that can severely impact overall system performance in planes.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

Designed to meet high-bandwidth demands for transferring long-distance data and video, GORE Fiber Optic Cables (1.2 mm Simplex) prove dependable in many airborne applications, like:

  • avionics digital networks
  • digital video systems
  • Ethernet backbone
  • flight management systems
  • inside-the-box / laser pigtail
  • strain-gauge systems
  • transceivers

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-29504. If you have any questions or to discuss your specific application needs, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (1.2 mm Simplex) for civil aircraft.

We invite you to download the data sheet for more technical information and performance data.

Optical Property Value
FON1002 FON1003 FON1253 FON1307 FON1371
Maximum Optical Loss at 1300 nm dB/km ≤ 1.5 ≤ 0.7
Maximum Optical Loss at 1310 nm dB/km ≤ 0.7 ≤ 1.5 ≤ 0.4
Mechanical / Environmental
Property
Value
FON1002 FON1003 FON1253 FON1307 FON1371
Jacket Material Extruded FEP
Jacket Color Blue
Core Type Single Mode or Multi-Mode, Graded Index
Coating Type Polyimide High-Temperature Acrylate
Buffering System PTFE
Temperature Range °C -65 to +200 -55 to +125

We invite you to download our drawings to view cable materials and characteristics, like diameter sizes.

Part Number Mode Type Core Cladding Coating
FON1002 SM (Single Mode) 9 125 155
FON1003 OM1 (Multi-Mode, Graded Index) 62.5 125 155
FON1253 SM (Single Mode) 9 125 250
FON1307 OM2 (Multi-Mode, Graded Index) 50 125 250
FON1371 OM1 (Multi-Mode, Graded Index) 62.5 125 250

GORE Fiber Optic Cables (1.2 mm Simplex) for Civil Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230-F6; BSS7324-7.25; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • MIL-STD-202, Method 103: Humidity
  • MIL-STD-810, Method 509: Salt Fog
  • MIL-STD-810, Method 510: Sand and Dust

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

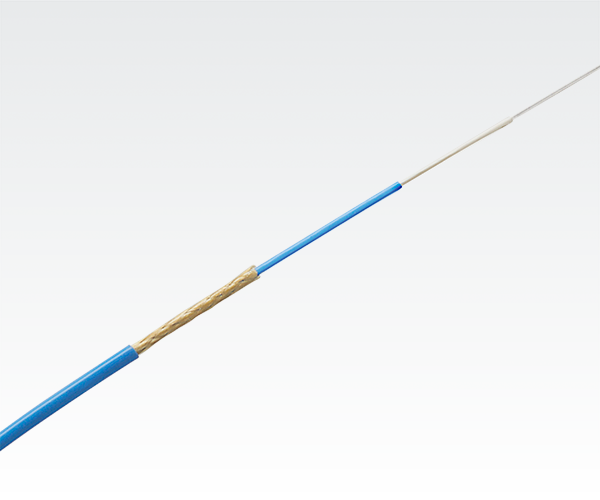

Gore’s 1.2 mm Simplex fiber optic cables.

GORE Fiber Optic Cables (1.2 mm Simplex)

900 micron

ROBUSTNESS WITH REDUCED SHRINK BACK

Like our other Simplex versions, these cables provide a high level of crush resistance to protect sensitive avionics. They also drastically reduce shrink back, along with shortening sample termination times. Without ever failing, our robust cables deliver quality signals with minimal loss during maintenance and flight.

Our 900 micron version also proves to be an excellent choice for inside-the-box applications because they’re slender, flexible and easy to route.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

With an ideal blend of slender, light size and robust construction, GORE Fiber Optic Cables (900 micron) reliably support high-speed data transfer in several applications, like:

  • inside-the-box
  • outside-the-box
  • transceivers

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC, MIL-STD-38999, and MIL-PRF-2950. If you have any questions or to discuss your specific application needs, including fiber options packaged with GORE® Cable Protection Systems for outside-the-box applications, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Cables (900 micron) for civil aircraft.

We invite you to download the data sheet for more technical information and performance data.

Electrical Property Value
Maximum Optical Loss at 850 nm dB/km 3.0
Maximum Optical Loss at 1310 nm dB/km 1.0
Mechanical / Environmental Property Value
Jacket Material PEEK
Jacket Color Tan
Core Type Single Mode or Multi-Mode
Coating Type High-Temperature Acrylate
Buffering System Expanded PTFE
Temperature Range °C -60 to +135

We invite you to download our drawings to view cable characteristics, like diameter sizes and weight.

Part Number Mode Type Core Cladding Coating
GSC-13-85067-00 OM1 (Multi-Mode) 62.5 125 245
GSC-13-85424-00 OM4 (Multi-Mode) 50 125 245
GSC-13-85375-00 SM (Single Mode) 9 125 245
GSC-13-85869-00 OM5 (Multi-Mode) 50 125 245

GORE Fiber Optic Cables (900 micron) for Civil Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ARINC 802-3: Performance Requirements (GSC-13-85067-00)

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

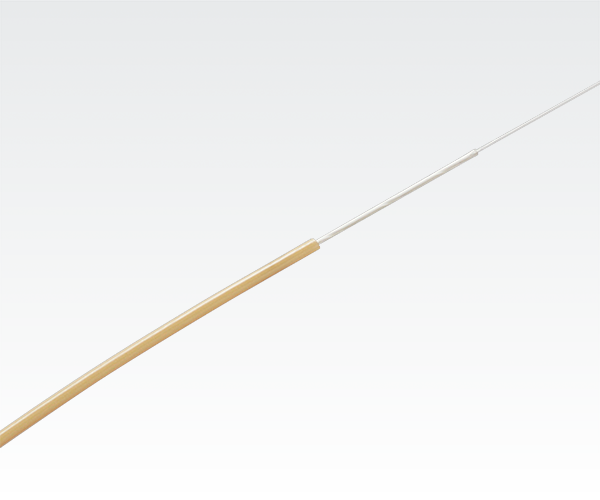

Gore’s 900 micron fiber optic cable.

GORE Fiber Optic Cables (900 micron)

12-Fiber Ribbon

RIGHT AMOUNT OF RUGGEDNESS

Available in several versions, each 12-core fiber optic cable is manufactured with a composite buffering system proven to withstand volatile conditions that commercial aircraft typically experience during maintenance and flight. They bring consistent signal integrity with low optical loss and offer uninterrupted high-speed data and video transmission long after alternatives have succumbed to their environment.

In a rugged, slim, flexible package, our 12-fiber ribbon cables are suitable for routing and applications ranging from inside-the-box to outside the aircraft.

PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS

Each version of GORE Fiber Optic Ribbon Cables offers the right amount of ruggedness to maximize protection and performance in a variety of applications, like:

  • avionics digital networks
  • digital video systems
  • Ethernet backbone
  • Flight management systems
  • Transceivers
  • Weather radar systems

Our cables can also be terminated with a variety of standard high-speed aerospace MT connector systems and backshells. If you have any questions or to discuss your specific application needs, contact a Gore representative today.

These values demonstrate the optical, mechanical and environmental performance of GORE Fiber Optic Ribbon Cables for civil aircraft. Our part numbers are identified by an asterisk (*) designating the core type, followed by an asterisk designating the number of fibers (i.e., 4, 8, or 12). Also, optical values are typical.

For exact part number values and more options of our 12-fiber ribbon cable, contact a Gore representative.

We invite you to download the data sheet for more technical information and performance data.

Optical Property Value
FON1214/*/* FON1256/*/* FON1551 FOA8100/*/*
Typical Application Inside-the-Box Outside-the-Box
Maximum Optical Loss at 850 nm (dB/km) ≤ 4.0 ≤ 2.3 ≤ 3.5 ≤ 2.3
Mechanical / Environmental Property Value
FON1214/*/* FON1256/*/* FON1551 FOA8100/*/*
Jacket Material Engineered Fluoropolymer Extruded PVDF Extruded PVDF with Strength Member
Jacket Colorl White Orange
Core Type Single Mode, Multi-Mode, or Multi-Mode, Graded Index Multi-Mode, or Multi-Mode, Graded Index
Coating Type Acrylate High-Temperature Acrylate High-Temperature Acrylate
Buffering System PTFE
Temperature Range (°C) -60 to +85 -55 to +125 -55 to +125 -60 to +125

We invite you to download our drawings to view cable characteristics, like diameter sizes, minimum bend radii and attenuation values.

Part Number Mode Type Core Cladding Coating
FON1214/1/* OM1 (Multi-Mode, Graded Index) 62.5 125 245
FON1214/2/* SM (Single Mode) 9.5 125 245
FON1214/4/* OM2 (Multi-Mode, Graded Index) 50 125 245
FON1214/5/* OM3 (Multi-Mode) 50 125 245
FON1214/6/* OM4 (Multi-Mode) 50 125 245
FON1256/*/* OM1-OM3 (Multi-Mode) 50
62
125
125
245
245
FON1551 OM2 (Multi-Mode, Graded Index) 50 125 245
FOA8100/*/* OM3 (Multi-Mode) 50 125 245

GORE Fiber Optic Ribbon Cables for Civil Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • MIL-STD-202, Method 103: Humidity
  • MIL-STD-810, Method 509: Salt Fog
  • MIL-STD-810, Method 510: Sand and Dust

Fill out a short form to get samples of our pre-qualified cables in 48 hours for prototyping and evaluation. For more information about the qualifications of our cables and complimentary samples, contact a Gore representative today.

Construction of Gore’s 12-core multimode fiber optic cable.
A
B
C
D
E

Polyvinylidene fluoride (PVDF) jacket

Close

Strength member

Close

ePTFE binder

Close

Composite buffer with fiber position index stripe

Close

Fiber

Close

Unique Buffering Systems of GORE Fiber Optic Ribbon Cables

Videos

Watch Gore engineers in these videos and more on YouTube demonstrating the durability of GORE Fiber Optic Cables.

More Information

LEARN MORE ABOUT GORE FIBER OPTIC CABLES OR ORDER NOW

Offered in robust Simplex and ribbon versions, GORE Fiber Optic Cables meet the civil aerospace industry’s bandwidth-intensive requirements. For more information or to discuss your specific application needs, contact a Gore representative today.

If you’re ready to order, visit our list of distributors and explore our sample inventory to learn more about selected products and lead times. Pre-qualified complimentary samples are available within 48 hours for prototyping and evaluation.

Resources

Recent News

W. L. Gore & Associates High Performance Aerospace Wires Set Gold Standard With Industry Award

Posted November 5, 2021

W. L. Gore & Associates (Gore) announced today that its GORE® High Performance Aerospace Wires, GWN3000 Series, were recognized among the 2021 Military & Aerospace Electronics Technology Innovators Awards. An independent panel of esteemed judges from the aerospace and defense community recognized Gore as a gold honoree for the second consecutive year. The company’s PHASEFLEX® Microwave/RF Test Assemblies were recognized in 2020.

Press Release

GORE® Jolts Emerging Electric Aviation Market with New High-Performance Aerospace Wires

Posted October 15, 2020

W. L. Gore & Associates announced today a new solution that meets higher voltages as the trend continues towards aircraft electrification to reduce the impact of air transport on our environment. GORE® High Performance Aerospace Wires, GWN3000 Series, deliver the best combination of superior mechanical strength and outstanding electrical reliability without increasing wire bundle size or weight.

Event

Gore at 2019 New Space Show

October 17, 2019 - October 18, 2019

Learn more about GORE® Space Cables and Assemblies engineered for the future of the space industry. Also, listen to our expert speak at the show on Thursday, October 17 at 11:00 am CEST.

Press Release

Gore Premiering New Portfolio of Qualified Solutions at 2019 NewSpace Show

Posted October 8, 2019

Gore will be showcasing a new portfolio of qualified GORE® Space Cables and Assemblies at the 2019 NewSpace Show in Monaco on October 17-18.

View all News & Events

FOR INDUSTRIAL USE ONLY

Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
