Overview

The aerospace environment routinely exposes microwave/RF assemblies to harsh contaminants such as fuels, oils and chemicals that can quickly degrade aircraft structures and cause assembly failure in sensitive avionics. In fact, globally more than 75% of microwave/RF assemblies are frequently replaced because of damage during installation or operation according to our independent studies and research. Costs can quickly add up with replacing assemblies, extra labor and more maintenance and downtime!

Vapor-Sealed for Durable Performance

GORE Microwave/RF Assemblies, 7 Series is engineered precisely to prevent the ingress of water vapor, fuel and other hazardous contaminants. Our award winning assemblies routinely maintain low insertion/return loss and excellent phase stability at frequencies up to 40 gigahertz (GHz).

Not only that, our robust assemblies provide outstanding shielding effectiveness against electromagnetic interference that can compromise signal integrity and reduce the quality of signal transmission. We also offer robust, low-profile connector options designed specifically to complement assembly performance, minimizing loss and reflection for optimized signal transmission.

When it comes to installation, aircraft maintainers will find it much easier to route our assemblies in confined areas because they’re smaller and more flexible with a tighter bend radius. You can be confident that our 7 Series won’t break or fail during routing like other standard assemblies that are more rigid.

The 7 Series is thoroughly tested and qualified for military airborne applications. They meet stringent mechanical/environmental requirements such as MIL-T-81490. All of this means superior performance over the aircraft’s lifetime, fewer replacements, reduced system downtime and lower total costs.

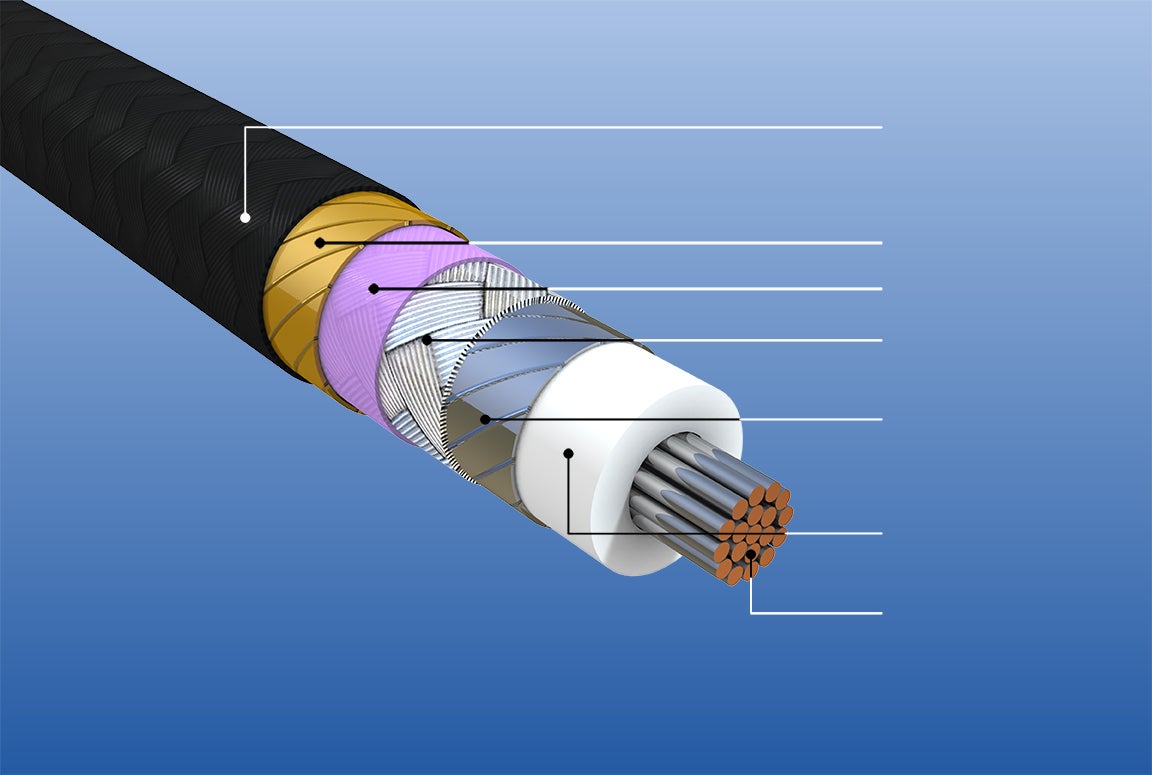

MRF Assembly 7 Series cross section
A
B
C
D
E
F
G

Engineered fluoropolymer jacket

Close

Vapor barrier

Close

Intermediate layer

Close

Torque-resistant braid

Close

Helically-wrapped, silver-plated outer conductor

Close

Composite dielectric

Close

Silver-plated copper conductor

Close

Vapor-sealed construction of GORE Mircowave/RF Assemblies, 7 Series

Applications

GORE Microwave/RF Assemblies, 7 Series is engineered to perform reliably in military airborne applications, including:

  • active electronically scanned array (AESA) radar
  • electronic defensive systems (signal detection, interception, identification)
  • SATCOM antenna connectivity

If you have any questions or to discuss your specific application needs, please contact a Gore representative.

Benefits

GORE Microwave/RF Assemblies, 7 Series provides system architects and engineers with many benefits that improve electrical and mechanical performance such as:

  • durable vapor sealing prevents ingress of water vapor and hash contaminants
  • maintains low insertion/return loss with excellent phase stability up to 40 GHz
  • less RF interference among electronic systems due to outstanding shielding effectiveness
  • smaller diameter with greater flexibility and tighter bend radius for ease of installation
  • longer system life for reduced downtime and less total costs

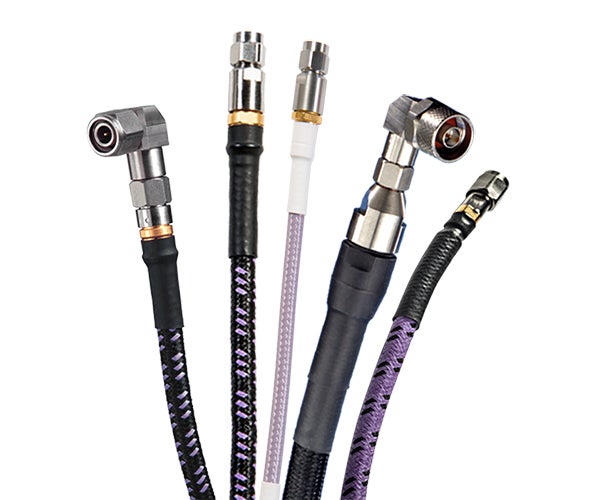

  • increased design flexibility with a variety of robust,low-profile connector options
  • meets stringent mechanical/environmental requirements such as MIL-T-81490

For more information about the benefits of our assemblies, please contact a Gore representative.

Properties

These values demonstrate the electrical, mechanical and environmental performance of GORE Microwave/RF Assemblies, 7 Series.

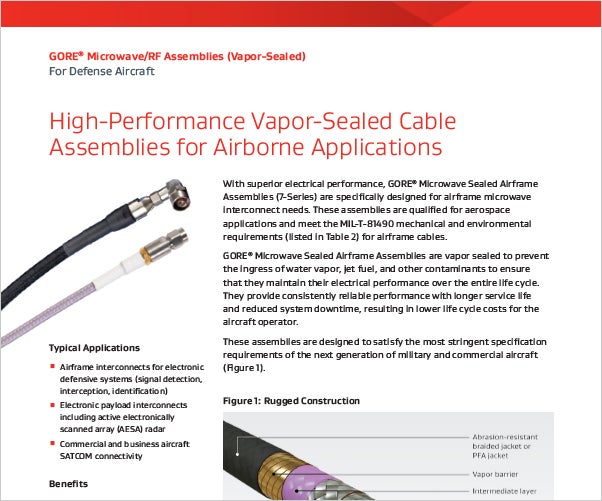

Download the data sheet for more technical information, including qualifications, connector options, and ordering information.

Electrical Property Cable Type
7G 75 7E 7L 7M
Max Frequency (GHz) 40.0 18.0 18.0 7.0 2.0
Impedance (ohms) 50±1 50±1 50±1 50±1 50±1
Dielectric Constant 1.4 1.4 1.4 1.4 1.4
Insertion Loss at Max Frequency
(dB/m [dB/ft])
2.56
(0.78)
1.05
(0.32)
0.62
(0.19)
0.33
(0.10)
0.129
(0.04)
Velocity of Propagation 85% 85% 85% 85% 85%
Time Delay (Nominal)
(ns/m [ns/ft])
3.94
(1.2)
3.94
(1.2)
3.94
(1.2)
3.94
(1.2)
3.94
(1.2)
Shielding Effectiveness
(dB to Max Frequency)
>90 >90 >90 >90 >90



Mechanical / Environmental Property Cable Type
7G 75 7E 7L 7M
Nominal Outer Diameter
(mm [in])
3.80
(0.150)
5.30
(0.210)
8.50
(0.335)
12.32
(0.485)
14.35
(0.565)
Nominal Weight
(g/m [oz/ft])
36.0
(0.39)
63.0
(0.67)
150
(1.61)
262.0
(2.82)
328.0
(3.52)
Minimum Bend
Radius (mm [in])
19.0
(0.75)
25.0
(1.0)
50.0
(2.0)
62.5
(2.5)
80.0
(3.15)
Center Conductor Solid Solid Solid Stranded Solid
Operating
Temperature °C (°F)a
-58 to +200
(-72 to +392)
-58 to +200
(-72 to +392)
-58 to +200
(-72 to +392)
-58 to +200
(-72 to +392)
-58 to +200
(-72 to +392)
Crush Resistance
(kgf/cm [lb/in])
8.95
(50.0)
8.95
(50.0)
8.95
(50.0)
8.95
(50.0)
8.95
(50.0)



aContact Gore for applications with an operating temperature > 175°C.

Online Tools

Easy to Use, Fast Results

Gore’s online resources are designed specifically to make it easy for you to select the right microwave/RF assembly for your specific application requirements.

NEW Microwave/RF Cable Assembly Builder allows you to design a Microwave/RF Cable Assembly with ease from your desktop, tablet or mobile phone. Whether you are working in Test & Measurement, Spaceflight, Aerospace or Defense you can design an RF cable assembly to meet your specific needs. Once you design your assemblies you’ll be able to download custom datasheets for your builds within minutes, and you can also submit the builds for a quote. A Gore specialist will then review your designs and application requirements.

Microwave/RF Cable Assembly Calculator allows you to calculate insertion loss, VSWR and other parameters of Gore’s assemblies for different cable types. Select and compare up to 3 cables at a time.

If you have questions about our assemblies and want to discuss your specific application needs, please contact a Gore representative.
