FAST, SECURE DATA TRANSFER FOR MISSION SUCCESS.
Data Sheets, 590.69 KB
Modern digital networks demand aerospace wire and cable that deliver high-speed data transfer with quality signals. At the same time, a rugged, compact design is essential for installation in aerospace environments where conditions are harsh and space is limited. GORE CAN Bus Cables for Aircraft from W. L. Gore & Associates offer a slim design that makes installation simple paired with rugged construction to ensure fast, accurate data transmission for the life of the aircraft.
Seconds matter during military operations, so aircrews must receive vital Information in time or risk compromising the mission and their safety. With aerospace wires and cables being key components in aircraft, they have to transmit data as fast as possible on avionics digital networks no matter the circumstances.
Built for speed and accuracy, GORE CAN Bus Cables reliably send high-quality signals for secure data transmission up to 1 GHz. They maintain controlled impedance at 120 ohms in whatever conditions they encounter. The reason is their unique multi-layer construction that provides versatile protection to shield wires from extreme impact. Our aviation cables can endure rapid temperature changes, repeated vibration, rigorous routing in airframes and more.
FAST, TROUBLE-FREE ROUTING
A smaller design is essential for routing and installation where space is limited. Our CAN Bus cables are 40% smaller than alternative designs, which makes them fundamentally lighter. A smaller diameter also means improved flexibility and reduced bend radius for quick routing and installation without any trouble. Maintainers will also like that our aviation cables have a unique inverted dielectric that makes wire prep and insertion in smaller connector systems much easier.
When put to the test, GORE CAN Bus cables for defense aircraft maintain stable communications on avionics digital networks over the aircraft lifetime. Ultimately, aircrews gain a decisive edge and the confidence that avionics transmitting critical information won't fail in the aircraft they fly.

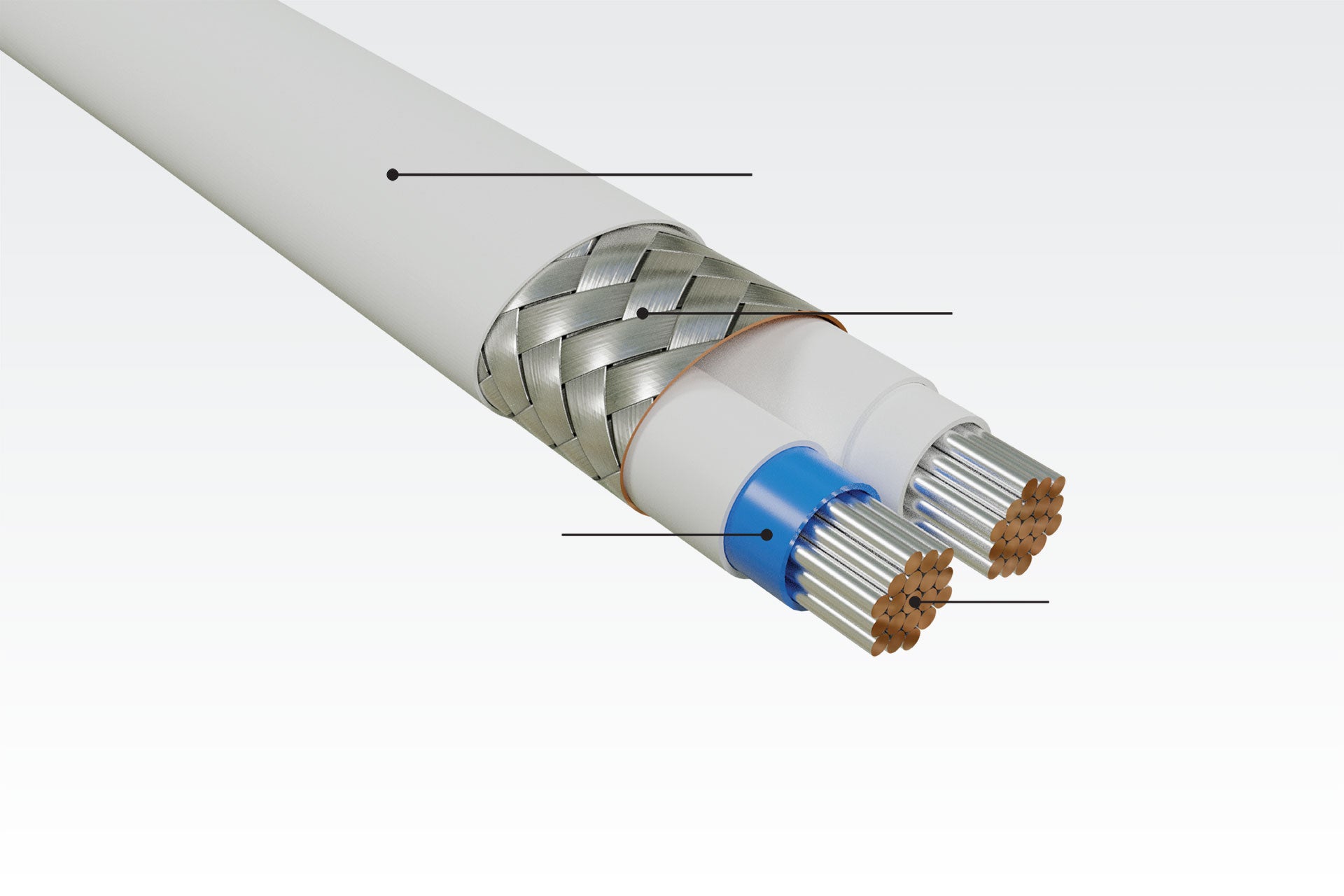

Compact footprint of GORE CAN Bus Cables
PROVEN PERFORMANCE ACROSS AIRCRAFT APPLICATIONS
GORE CAN Bus Cables are suitable for today’s faster avionics digital networks and other applications requiring secure, accurate high data rate transfer, like:
- avionics digital networks
- cabin management systems
- controller-area networks
- digital video systems
- serial buses
Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 and 22D contacts. If you have any questions or to discuss your specific application needs, contact a Gore representative today.
Features & Benefits
GORE CAN Bus Cables are engineered with unique features that make them more durable against challenging environmental factors and aircraft conditions, including:
- chemically inert, temperature- and abrasion-resistant materials
- compact footprint with smaller diameters and inverted dielectric design
- improved flexibility with reduced bend radius
Our cables provide aircraft system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:
- high-quality signals for fast, secure data transmission up to 1 GHz
- proven controlled impedance at 120 ohms
- versatile protection against extreme mechanical/environmental impact
- size and weight savings with 40% smaller diameters than alternative designs
- trouble-free routing with improved flexibility and reduced bend radius
- easier wire prep/insertion in smaller connector systems due to inverted dielectric
- compatible with a variety of high-speed connector systems and backshells
- selected pre-qualified samples with short lead times for prototyping and evaluation
- low risk based on validated product performance in real-world conditions
For more information about the features and benefits of our cables, contact a Gore representative today.
These values demonstrate the electrical, mechanical and environmental performance of GORE CAN Bus Cables for defense aircraft.
|Transmission Speed GHz||Up to 1|
|Standard Impedance Ohms||120 ± 10|
|Typical Operating Voltage V||<15|
|Nominal Velocity of Propagation %||80|
|Nominal Time Delay ns/m (ns/ft)||4.10 (1.25)|
|Capacitance pF/m (pF/ft)||42.0 (12.8)|
|Dielectric Withstanding Voltage Vrms
|Mechanical / Environmental Property||Value|
|Jacket Material||Engineered Fluoropolymer|
|Jacket Color||White (Laser Markable)|
|Conductor||Sliver-Plated Copper/SPC Alloy|
|Dielectric Material||Expanded PTFE/PTFE|
|Temperature Range °C||-65 to +200|
PART NUMBERS & DRAWINGS
We invite you to download our drawings to view cable characteristics, like diameter sizes, weight and attenuation values.
GORE CAN Bus Cables for Defense Aircraft have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
- SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)
For more information about the qualifications of our cables, contact a Gore representative today.
LEARN MORE ABOUT GORE CAN BUS CABLES OR ORDER NOW
With a unique inverted dielectric, Gore’s controlled-impedance cables deliver fast, secure communications during missions. Find out if our high speed data cables are the right fit for your application by ordering our selected prequalified samples, which will arrive within 48 hours. To find out more or to discuss your specific application needs, contact a Gore representative today. Contact one of our authorized distributors when you’re ready to place an order.
