High-Speed Data & Video Transfer

Get a sampleMilitary personnel rely on data and video transferred in a split second to get the necessary information. Also, extreme temperatures, repeated vibration and challenging routing configurations are examples of land and in-vehicle conditions that can cause system and cable failure.

GORE® Quad Cables meet these challenges by offering high data rate transmission and a lighter, more rugged design. Designed for high-speed serial data and video protocols, they offer tighter skew requirements with controlled impedance. Our cables feature dual differential pairs that routinely transfer bi-directional signals at speeds up to 1 GHz at lengths up to 30 meters (100 feet).

Small, Rugged Quadrax Design

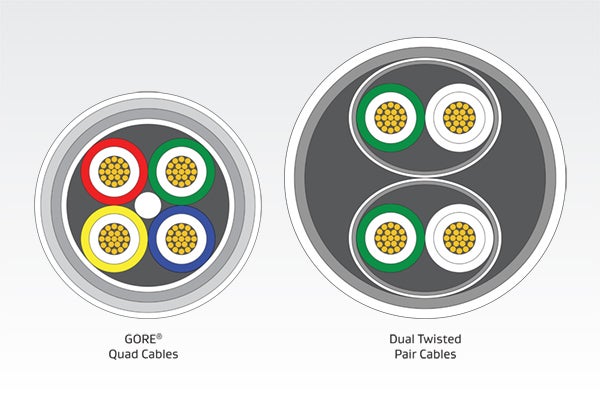

Gore’s Reduced Quad Cable Diameter

Reduced cable diameter

We originally invented this low-crosstalk quadrax design that reduces interference for clear, strong signals. Our cables offer a more compact size that’s around 40% smaller than comparable dual twisted pair cables. And, these reduced diameters are up to 30% lighter, which translates to considerable weight savings in vehicles. Being also highly flexible, maintainers can bend our cables tightly for easier routing in space-limited vehicle systems.

But there’s more! We make our cables with remarkably strong materials proven to withstand the environmental challenges and mechanical stresses typical during operations.

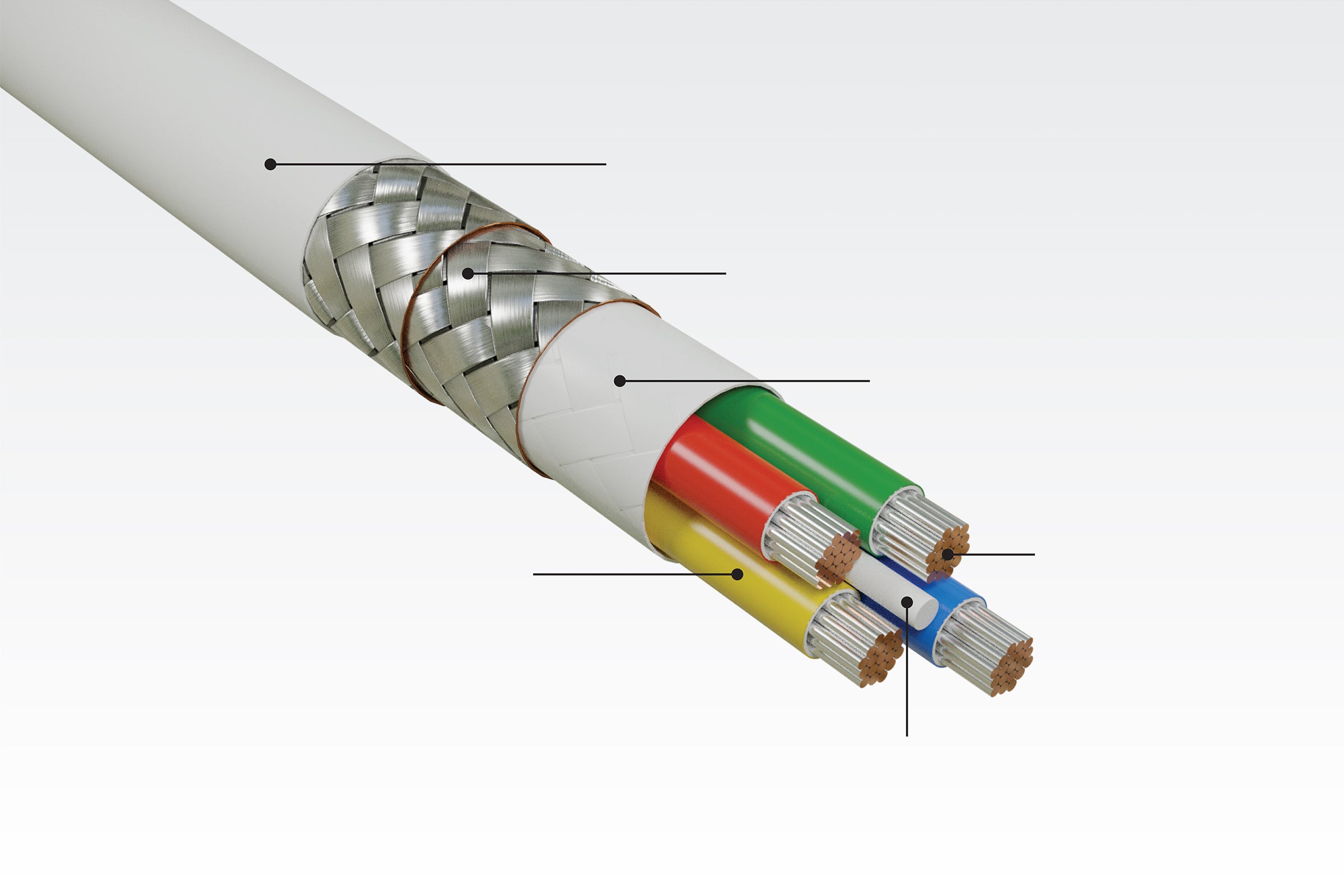

Construction of GORE Quad Cables (Specialty Versions)
A
B
C
D
E
F

Engineered fluoropolymer jacket

Close

Double-braided shield

Close

ePTFE binder

Close

Silver-plated copper alloy conductor

Close

FEP filler

Close

Color-coded composite dielectric

Close

Remarkably strong materials of GORE Quad Cables.

Applications

Perfectly aligned with today’s high-speed serial data and video protocols, GORE Quad Cables deliver steadfast results in a variety of applications, like:

  • box-to-box systems
  • digital visual interface (DVI)
  • EO/IR (electro-optical infrared) sensors
  • Ethernet backbone
  • HD streaming camera/video systems
  • mission systems
  • propulsion control
  • vectronics digital networks

Our cables can also be terminated with a variety of leading high-speed connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 contacts.

Features & Benefits

GORE Quad Cables are engineered with unique features that make them more durable against challenging environmental factors and in-vehicle conditions, including:

  • original inventor of innovative, low-crosstalk quadrax design
  • temperature- and abrasion-resistant materials
  • chemically inert materials
  • smaller, lighter diameters

Our cables provide vehicle system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:

  • tighter skew requirements aligned with high-speed serial data/video protocols
  • routine bi-directional signals with controlled impedance at speeds up to 1 GHz
  • low crosstalk performance for less signal interference
  • remarkably strong materials for rugged protection against challenging environments
  • compact size around 40% smaller than dual twisted pair constructions
  • considerable weight savings with small diameters up to 30% lighter
  • easy routing in space-limited vehicles from high flexibility and tight bend radius
  • compatible with a variety of high-speed connector systems and backshells

Technical Specs & Drawings

These values demonstrate the electrical, mechanical and environmental performance of GORE Quad Cables for defense land systems.

Elec./Mech./Environ. PropertyValue
RCN8752RCN8982RCN8973
Signal Transmission Speed GHzUp to 1Up to 1Up to 1
Standard Impedance Ohms100 ± 5100 ± 10100 ± 10
Typical Operating Voltage V< 15< 15< 15
Nominal Velocity of Propagation %808080
Nominal Time Delay ns/m (ns/ft)4.10 (1.25)4.23 (1.29)4.10 (1.25)
Capacitance pF/m (pF/ft)50.0 (15.2)39.4 (12.0)42.7 (13.0)
Minimum Near-End Crosstalk (NEXT) dB
  at 10 MHz
  at 100 MHz

50.0
35.0
Maximum Skew Within Pair ps/m (ps/ft)13.12 (4.0)13.12 (4.0)13.12 (4.0)
Dielectric Withstanding Voltage Vrms
  Conductor-to-Conductor
  Conductor-to-Shield
150015001500
Jacket MaterialEngineered Fluoropolymer
Jacket ColorWhite (Laser Markable)
ConductorSilver-Plated Copper Alloy
Conductor Color CodingBlue/Red, Green/YellowBlue/Orange, Green/RedBlack/Blue, Green/White
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-55 to +200-55 to +200-55 to +200

Download our data sheet for more cable characteristics and qualifications. Also, fill out a short form for instant access to drawings.

DATA SHEET DRAWINGS

Get Samples or Buy

With rugged, light GORE Quad Cables connected to high-speed vectronics, the military can save vehicle weight and have the utmost confidence in getting vital information instantly for mission success. Get a complimentary, pre-qualified sample to see if our inventive quadrax design is compatible with your application.

If you’re ready to purchase our defense cables, reach out to a trusted distributor for in-stock availability. For more information or to talk about your specific application needs and requirements, contact us today.

SAMPLES PURCHASE CONTACT US
